R&B Co. manufacturing department, equipped with 2 industrial workshops, light workshop and heavy workshop and able to produce a wide range of mechanical parts by different sections such as turning, milling and rolling, in different size and dimensions.
This factory located in an area of 3500 m2. With More than 25 industrial machine’s technicians and professional engineers.
Capabilities and operations taken by manufacturing section:
•Production of different types of industrial rings up to 4000 mm in diameter
•Production of gearboxes in railway industries and …. Of gas and rail turbines
•Rolling of different types of steel beams and….

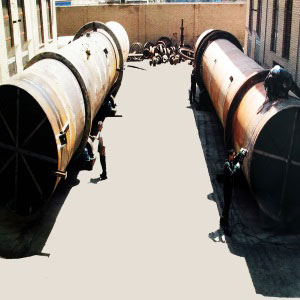

•making Trim Furnaces for Factories
•making gears from 12mm diameter to 4000 mm
.jpg)

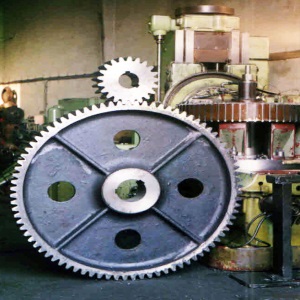

1.Helical Gear (Spiral)

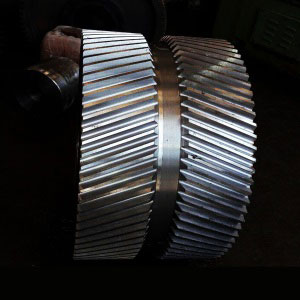

2.Herringbone Gear

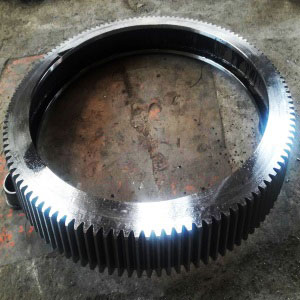

3.Simple Moving Gear Around the Furnace
4. Simple Pinion Gear
.jpg)

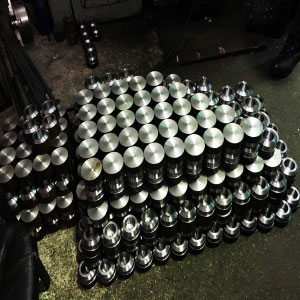

5. Unfinished Mendel Ball
.jpg)

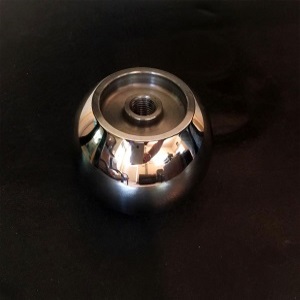

6. Finished Mendel Ball
.jpg)

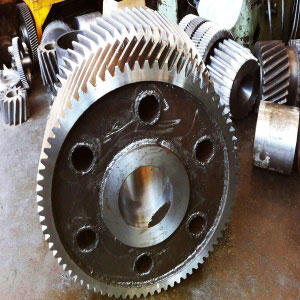

7. Gear
Factory

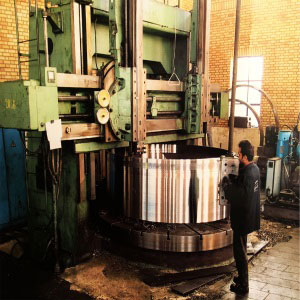

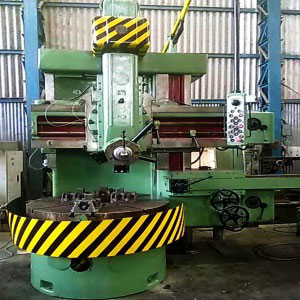

1541 Lathe boring Single Column
Single-turning and boring machines in 1541 model are versatile machines are designed to handle a variety of products from ferrous and nonferrous metals in a small batch and mass production. The machine can produce cylindrical and tapered grinding and boring, protachivanie planes, drilling, reaming and deployment of holes, as well as the Medium to finish turning of the flat end surfaces.

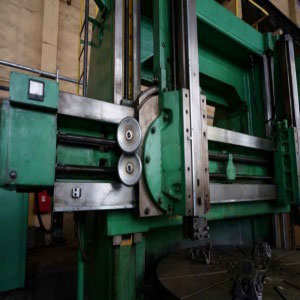

Lathe Boring Single Column 1L532
| Parameter name | 1L532 |
|---|---|
| faceplate diameter, mm | 2800 |
| Swing, mm | 3150 |
| Max work-piece height, mm | 1600 |
| Max table loading, tonne | 16 |
| Max ram travel, mm | 1200 |
| Parameter name | 1L532 |
|---|---|
| Max horizontal travel of carriage, mm | 1720 |
| Carriage inclination angle, dge | 30 |
| Carriage feeds number | 16 |
| Carriages feeds range, mm/rev | 0.09-16 |
| Feeds of traversal beam, mm/min | 360 |
| Max distance between ram's axis, mm | 360 |
| Distance between table and ram, mm | 0-1780 |
| Distance between table and lower surface of traversal beam, mm | 400-1640 |
| Revolution speeds number | 18 |
| Table speeds, rpm | 1.25-63 |
| Main engine power, kw | 55 |
| Dimensions, mm | 5485x6120x4910 |
| Total weight, kg | 41420 |
Equipment

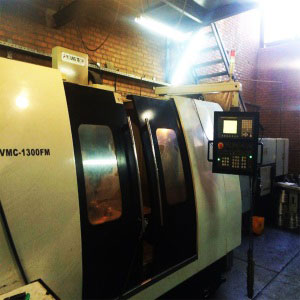

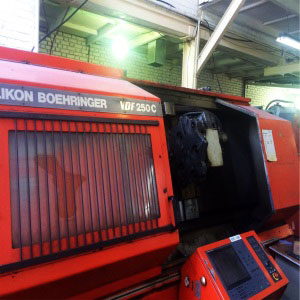

Milling (CNC)
Turning (CNC)
